SPLITTER FILTER INLINE ADSL2+

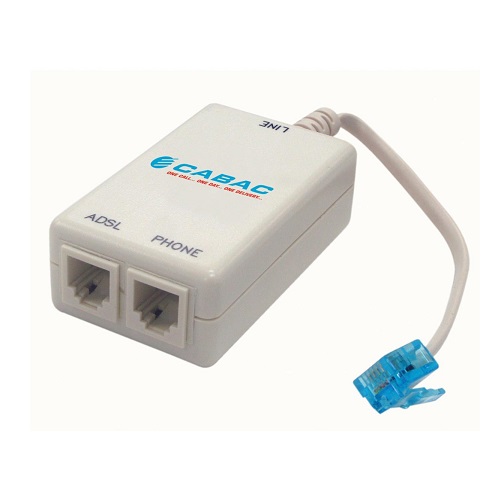

ADSL 2+ In-Line Filter/Splitter
ADSL 2+ In-Line Filter/Splitter Features:
- Splits the ADSL line into one filtered RJ12 socket for the phone and one non-filtered RJ12 socket for the ADSL 2+ modem
- Compatible with all popular handsets and cordless phones
- Complies with existing ACA regulations
- RoHS compliant
- Works with ADSL2+
- Conforms to RCIT.0004
- Telstra listed
- Compliant to AS/ACIF S041 : 2005
- Meets ETSI TS 101 952-1-5 Option A
- High quality low pass filter
- Optimum performance
- Compatible with Mode-3 connection
Technical Data:
| RTL Reference Impedance Zr: 270Ω + (750Ω // 150nF) Zsl: 82Ω + (600Ω // 68nF) |
ADSL Off-Hook Isolation 30 kHz – 350 kHz : > 34 dB 350 kHz – 2204 kHz : > 55 dB |
| Insertion Loss @ 1 kHz Less than 1 Db |
ADSL Band Attenuation 30 kHz – 2204 kHz : > 55 dB |
| Insertion loss distortion Less than 1 dB |
Unbalance About Earth Voice band: 50 Hz to 600 Hz : > 46 dB 600 Hz to 3400 Hz : > 53 dB 3400 Hz to 4000 Hz : > 46 dB |
| Delay Distortion 200Hz – 4000 Hz : less than 250 μs |
ADSL Band: 4 kHz – 30 kHz : > 40 dB 30 kHz – 140 kHz : > 50 dB 140 kHz – 2208 kHz : > 50 dB 2208 kHz – 5.0 MHz : > 30 dB |
| DC resistance Non linear device. @ 30 mA Voltage drop less than 3V (or less than 100 ΩDC) |
DC Current range 15 mA to 100 mA |
| Insulation Resistance > 10 MΩ |
Voice Band Noise Less than -75 dBmp using a 600 Ω Less than -50 dBm (unweighted) Less than -60 dBm at any single frequency over the range 30 Hz to 20 kHz |
| Ringing Frequency Loss Freq. range 18 Hz to 28 Hz: Voltage drop less than 2 Vrms |
Return Loss 300Hz – 3400Hz > 12 dB 3400Hz – 4000 Hz > 8 dB |
