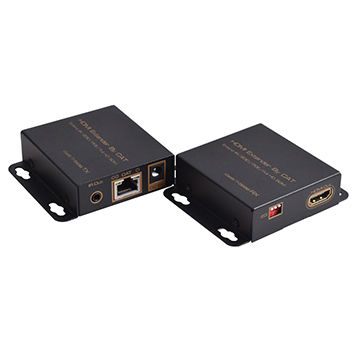

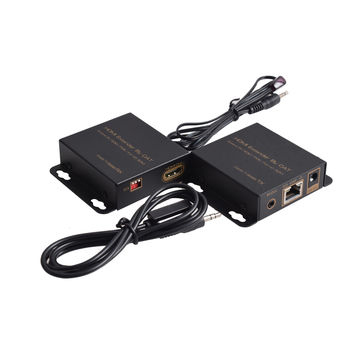

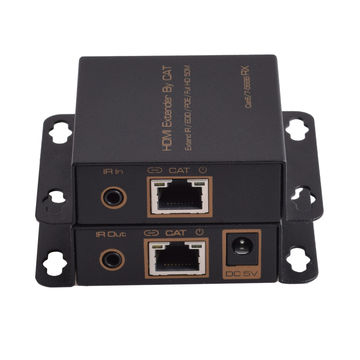

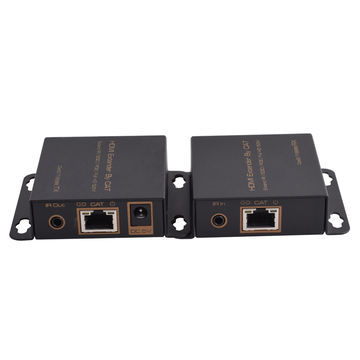

HDMI 50M Extender Over Single CAT5/CAT6 with IR and POE

HDMI 50M Extender Over Single CAT5/CAT6 with IR and POE

This HDMI Extender use Single cat-5E or cat-6(recommended) cables up to 50 meters instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.

Feature

• Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
• Use one cat5e/cat6 cable to transmit the HDMI Signal and IR signal, the max cat cable length can be up to 50m.
• Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
• Support Resolution up to 1080P/60HZ.
• Support IR extender, it can do long distance control to the HD Source by using the IR received at the receiver.
• Support EDID Management and Control
• CAT connections according to IEEE-568B
• LED indication: when power is supplied or device is working, LED relative to is light.
• No loss of quality
• Installs in minutes
• Need DC5V/1A power supply
