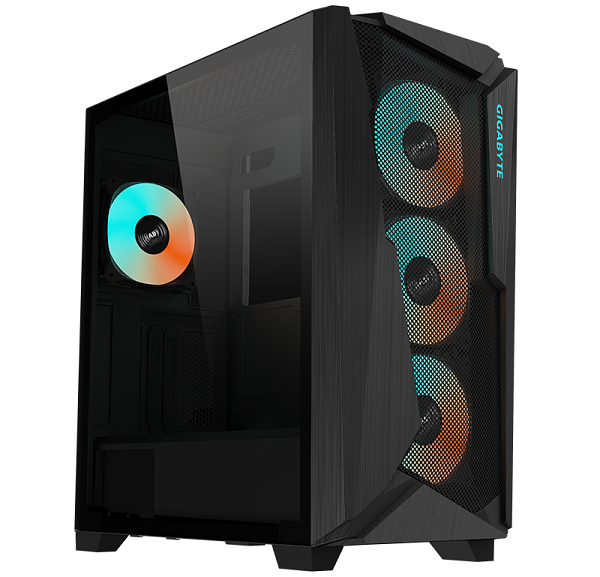

Gigabyte C301G Mid PC Case, RGB, USB-C, USB(2), Audio, Glass Side Panel, Black, ATX
GIGABYTE C301G MID PC CASE, RGB, USB-C, USB(2), AUDIO, GLASS SIDE PANEL, BLACK, ATX
OPTIMIZED AIRFLOW DESIGN
The GIGABYTE C301 GLASS comes with the large mesh front and the vented top panel, delivering generous airflow for optimized cooling with premium aesthetics.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices.
*The type of RGB lighting effect and software depends on the MB support.
WAVE
CYCLE
PULSE
FLASH
DFLASH
STATIC

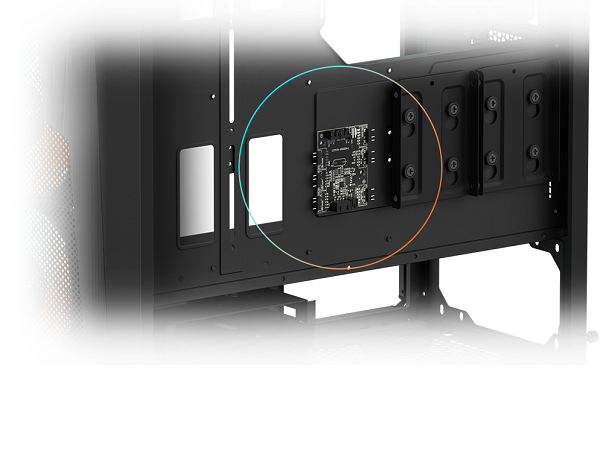

ARGB CONNECTOR HUB
The built-in ARGB connector hub is equipped with six 5V 3-pin connectors, enabling users to expand their RGB light stripes, create a superb cooling system as well as a fantastic and gorgeous rig.
MAX COMPATIBILITY
The GIGABYTE C301 GLASS can fit up to E-ATX motherboards, up to seven 120mm fan support, and up to 360mm radiator, providing users with the upmost flexibility.
Vertical GPU Installation – Dimensions – Fan system – Radiator system – Drive Bays
*Provide a vertical holder kit which can support 100mm (5 slot) card thickness for ins
TEMPERED GLASS SIDE PANEL
Built with 4mm black tempered glass on side panel, GIGABYTE C301 GLASS is an attractive, versatile chassis that can be a stunning showpiece for your PC parts. The non-drilled glass design effectively reduces the risk of fragmentation, allowing users to remove it with ease and safety, also extending the product lifespan.
PSU SHROUD DESIGN
Enjoy a clean look by hiding the PSU and those messy power cables inside the PSU shroud, while separating the PSU heat from the rest of the internal system. With the window design on the left side of the shroud, users can show off the cool outlook of PSU.
DETACHABLE DUST FILTER
The filters keep your PC from accumulating dust, while maintaining optimal cooling performance. The top magnetic filter, along with the removable filter at the bottom, make maintenance easy.
HDMI
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photographic variables and monitor settings so it may vary from images shown on this site. Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.
KEY FEATURE
Optimized Airflow Design
RGB Fusion with ARGB Connector Hub
Support Motherboards up to E-ATX
Up to 360mm Liquid Cooling Compatible
Support Vertical GPU Installation
Full-Size Tempered Glass Side Panel
With USB 3.0 x2 and USB 3.1 Type-C x1 on I/O panel
Pre-installed 4 ARGB fans
SPECIFICATIONS
|
Case Form Factor |
Mid Tower |
|
M/B Type |
Mini ITX / Micro ATX / ATX / E-ATX |
|
Color |
Black |
|
Materials |
Steel, Plastic, Glass |
|
Dimensions |
H=486 W=220 D=473 mm (Within ± 1% error) |
|
Expansion slots |
7 |
|
5.25″ Drive Bays |
None |
|
3.5“/2.5” Drive Bays |
2 |
|
2.5″ Drive Bays |
2 |
|
I/O Panel |
USB 3.1 Gen2 Type-C x1/ USB 3.0 x2 / Audio In & Out (supports HD Audio) / LED Switch |
|
Pre-installed Fan |
Front : 120mm x3 (ARGB) |
| Rear : 120mm x1 (ARGB) | |
|
Fan Support |
Front : 120mm x3 / 140mm x3 |
| Top : 120mm x3 / 140mm x2 | |
| Rear : 120mm x1 | |
|
Radiator Support |
Front : Max 360mm |
| Top : Max 360mm | |
| Rear : Max 120mm | |
|
Power Supply Type |
Standard ATX (Not included) |
|
Maximum Compatibility |
CPU Height : 170mm |
| GPU Length : 400mm | |
| PSU Length : 180mm | |
|
Vertical GPU Mount |
Yes (VGA holder bracket: 100mm total clearance) |
| *Requires PCIE Riser Cable | |
|
Dust Filters |
Top, Bottom |
|
RGB Lighting |
Yes (Support RGB Fusion) |
|
Weight |
N.W. 7.8 Kg |
| G.W 9.0 Kg | |
|
Package Dimensions |
H=530 W=282 D=530mm |
