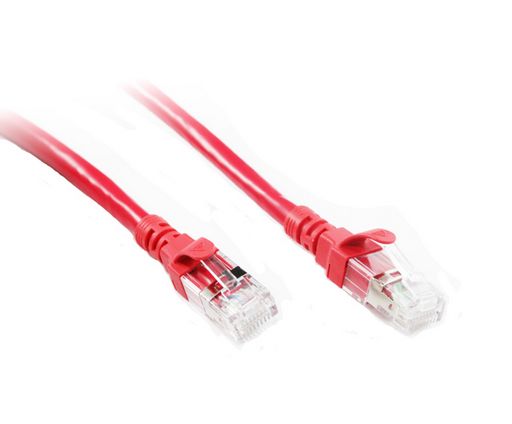

Cat 6A 10GB SSTP/SFTP Patch Cables

CAT6A ( CAT6 Augmented ) cable is an ideal solution for 10G network. It supports the higher frequencies required for 10G Ethernet and fully backwards compatible with CAT6 and CAT5e. All of our CAT6A cables are double shielded and fully screened to ensure immunity from Alien Crosstalk and other external interference and are specified up to frequencies of 500Mhz.
SSTP (Screened Shielded Twisted Pair) or SFTP (Screened Foiled Twisted Pair) cabling offer shielding between the pair sets and an overall sheath shield within the 100 Ohm twisted pair cable. This type of shielding protects EMI from entering or exiting the cable and also protects neighbouring pairs from crosstalk.

Meets all augmented CAT6A TIA-568-C.2 requirements
Ideal Cable for 10 Gigabit Application
High Performance Data Communication Cable
Guaranteed Performance up to 500Mhz
1kV AC for 60secs dielectric strength
Max. 50N pulling tension
Minimum 8x cable diameter bending radius
Temperature range: 0-50°C (Installation), -10-60°C (Operation)
100Ohms mean characteristic impedance
68% nominal velocity propagation
Fully screened for alien crosstalk immunity
Fully shielded construction virtually eliminates ANEXT
Fire Resistant/Flame Retardant PVC Jacket
50u gold-plated and shielded CAT6A connectors
Cable features four individually aluminium/Mylar wrapped twisted pairs, and an overall tinned copper braided shield, foamed PE insulation, and an FR PVC jacket
26AWG stranded copper conductors
Specially designed RJ45 shielded plug with 50u gold-plated contact
Snagless designed boot provides tab protection

Australian Approval
ANSI/TIA 568C.2 Approval
UL Approval UL444
ISO/IEC60332-1 Approval
ISO/IEC60332-3 part 24 Approval
ISO/IEC 11801 Approval
EN50288-4-2, EN50173 Approval
