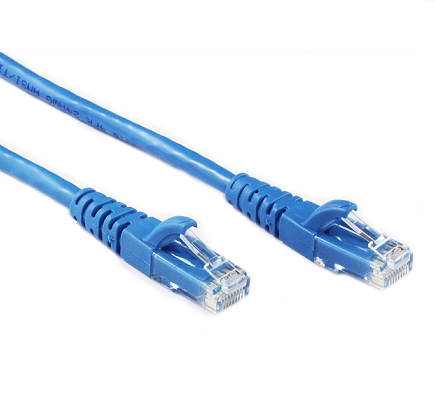

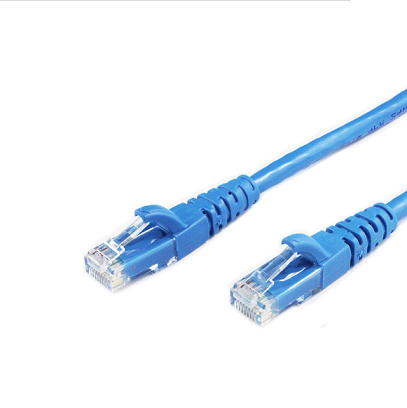

20M Blue CAT6 UTP Cable

20M Blue CAT6 UTP Cable

24 AWG stranded copper conductor

PE insulation

PE central cross

CM Rated FR PVC jacket

OD=6.2mm

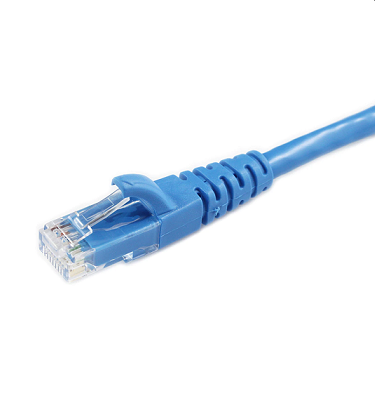

50u Gold-plated 8P8C connector

STANDARDS

ANSI/TIA 568C.2)

ISO/IEC 61156-6

EN 50288-6-2

ISO/IEC 11801

EN 50173

UL Approved UL80034

ETL Verified & Approved E188601-T

ROHS Approved

Australian ACMA Approved N18767

APPLICATIONS

1000Base-TX ( TIA/EIA-854 )

1000Base-T ( IEEE 802.3ab )

100Base-TX ( IEEE 802.3u )

10Base-T ( IEEE 802.3 )

FLAME RATING

UL 444, CM

ISO/IEC 60332-1

OPERATION TEMPERATURE

-20℃ to 60℃
